Overview:

Securion personalizes and durably protects secured badges for every security application:

From simple ID cards to fraud-proof security:

• Governmental applications : Identity cards, Driving licenses, Welfare and health cards
• Security and identification applications at companies, harbors and airports, schools and universities
• And for all applications that require fraud-proof identification and high resilience

Badge lamination:

A protection film is applied over the surface with hot roller technology, after the graphical and electrical personalization process. The film is either a continuous layer of varnish or a patch. Editing and encoding a secure badge is just a matter of a single pass.

Main specifications:

• Single and dual-sided printing and lamination
• Color and monochrome capabilities
• Lamination and printing speed :
  • between 85 and 105 Cards /h (YMCK-K + patch 1.0 mil single-sided),
  • between 85 and 120 Cards /h (YMCK + patch 1.0 mil single-sided)
• Encoding options: magnetic stripes, contact and contactless SMART cards.
• Windows™ Vista, XP and 2003 Server compatible
• 1-Year warranty

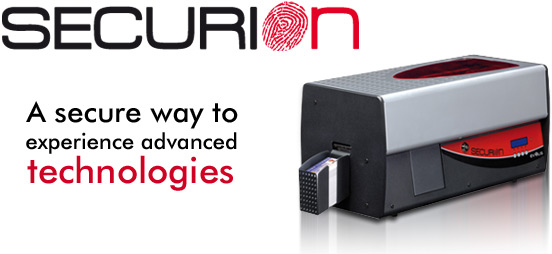

Advantages of the Securion printer:

Secure badges and restrictions of use

• Encoding options for magnetic stripes, smart cards and contactless cards (all options can be combined in a same printer).
• A centralized locking system to prevent theft of films, patches, rejected badges or blank cards.
• Securion can be password protected, if this option is enabled in the software. Only authorized staff can then use the printer.

Proven reliability

• The frame and the stand are of metal to increase the lifespan of the printer and to fight any intrusion attempt.
• A 1-year warranty (printer and lamination station), limited to 100,000 inserted cards for the print head and the heating roller.

User-friendly and flexible

• A 2-line LCD screen displays the status of the printer and of the lamination station. The menu offers direct access to a range of settings and data related to the operation and maintenance of the printer.
• A two-color LED provides instant notification on the printer status: green indicates normal operation, red indicates an alert or error.
• Standard USB and Ethernet ports.

Cost-efficient

• Securion includes equipment and feature in its standard version that are offered as options by the competition (Ethernet port, lock, eject tray, 100-card feeder and tray, 2-line LCD screen…).
• Securion can apply 1.0 mil lamination patches on standard PVC (single-sided lamination) cards, which cuts the cost per card by approximately 10%.
