Fargo HDP5000 ID Card Printer |
Great image quality at an affordable price. Ideal solution for printing on technology-rich smart cardsOur enhanced HDP5000 ID card printer and encoder is feature-packed. Perfect for smart cards with embedded electronics, it reliably produces cards in High Definition with the highest image quality available. The HDP5000 ID card printer and encoder upgrades easily in the field, with additional modules. |
Specifications Overview (complete HDP5000 specs available at hidglobal.com)
Print Method:
HDP Dye-Sublimation / Resin Thermal Transfer
Resolution:
300 dpi (11.8 dots/mm)
Colors:
Up to 16.7 million / 256 shades per pixel
Print Speed (batch mode):**
• up to 24 seconds per card / 150 cards per hour (YMC with transfer)*
• up to 29 seconds per card / 124 cards per hour (YMCK with transfer)*
• up to 40 seconds per card / 90 cards per hour (YMCKK with transfer)*
• up to 35 seconds per card / 102 cards per hour
(YMCK with transfer and dual-sided, simultaneous lamination)*
• up to 48 seconds per card / 75 cards per hour
(YMCKK with transfer and dual-sided, simultaneous lamination)*
Accepted Standard Card Sizes:
CR-80 (3.370˝ L x 2.125˝ W / 85.6 mm L x 54 mm W)
Accepted Card Thickness:
.030˝ (30 mil) to .050˝ (50 mil) / .762 mm to 1.27 mm
Input Card Cartridge Capacity:
100 cards (.030˝ / .762 mm)
Output Hopper Card Capacity:
200 cards (.030˝ / .762 mm)
Software Drivers:
Windows 8/ 7/ Vista (32bit & 64 bit) / Server 2008 & 2003/ XP;
Mac OS X v10.6 / v10.5 & Linux***
Print Area:
Over-the-edge on CR-80 cards
Warranty:
• Printer - One year onsite

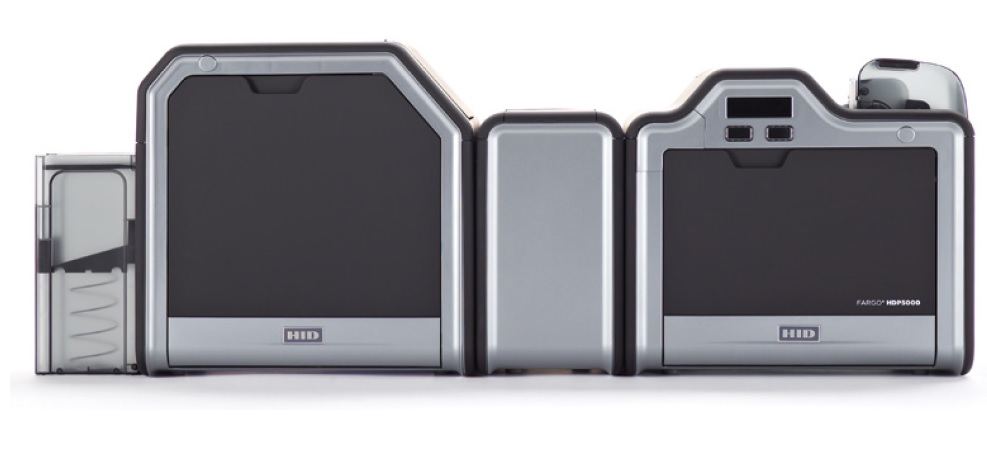

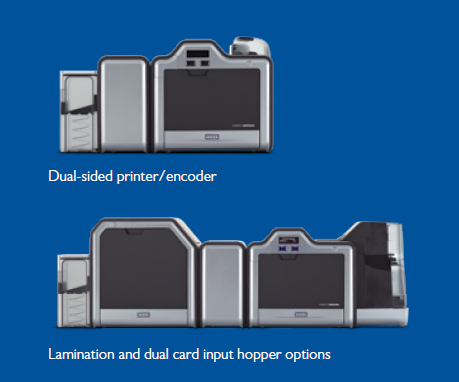

Optional module:
Laminator and double side card fipper
